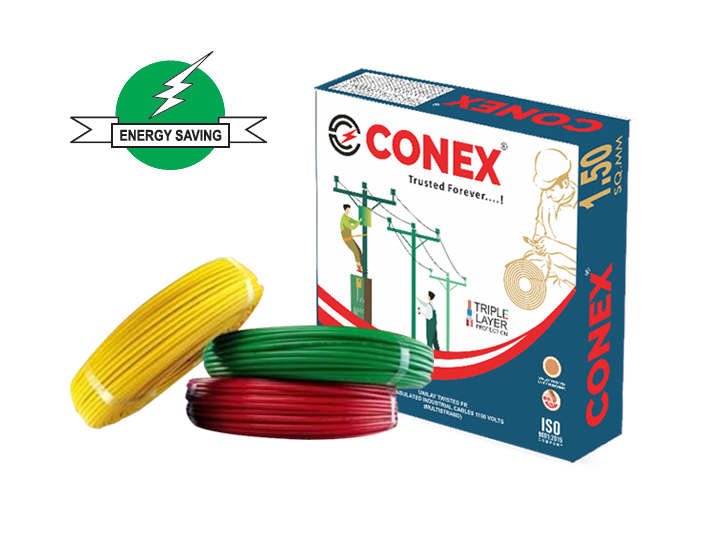

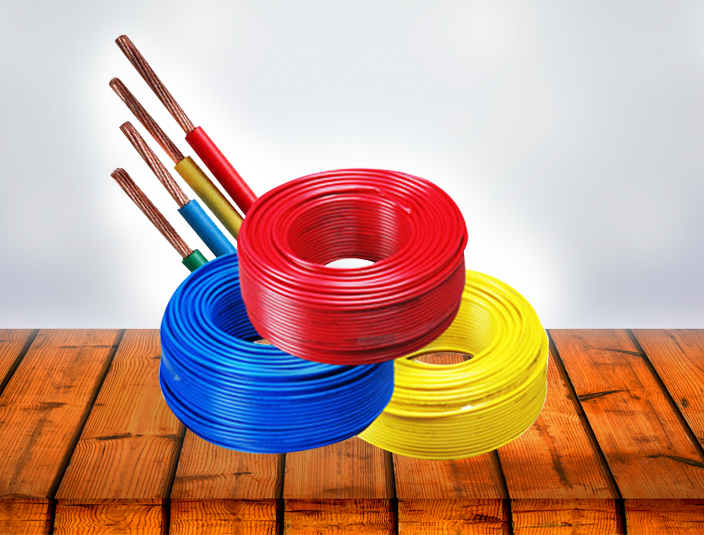

FR Unilay Twisted Multistrand Cables offer fire-resistant, flexible, and durable performance for demanding electrical applications. Ideal for both residential and industrial use.
Single core, unsheathed cables in voltage grade 1100 volts |
||||||
|---|---|---|---|---|---|---|
| Nominal are of Conductor | Number/Nom. Dia of wire | Thickness of insulation (Nom.) | Approx. Overall Diameter | In conduit/Trunking | Unenclosed-clipped directly to a surface or on cable tray | Resistance (max.) per km@20c |
| Sq.mm. | mm. | mm. | mm. | Amps. | Amps. | Ohms. |
| 0.75 | 7/.37 | 0.6 | 2.4 | 8 | 9 | 26.0 |
| 1.0 | 19/.26 | 0.7 | 2.8 | 12 | 14 | 18.10 |
| 2.5 | 19/.32 | 0.7 | 3.1 | 15 | 18 | 12.10 |
| 2.5 | 37/.3 | 0.8 | 3.9 | 21 | 24 | 7.41 |
| 4.0 | 37/.37 | 0.8 | 3.9 | 28 | 32 | 4.95 |
| 6.0 | 61/.7 | 0.8 | 0.5 | 37 | 42 | 3.30 |
| For BIS Certification details see web site http://www.bis.org.in Standard Colours : Black, Red, Blue, Yellow, White, Green & Grey | ||||||
Conex Cable have built a strong product portfolio of Wires and Cables.
